Bench-Mounted Dot Peen Part Marking Systems

Pryor BenchDot – 4000 B

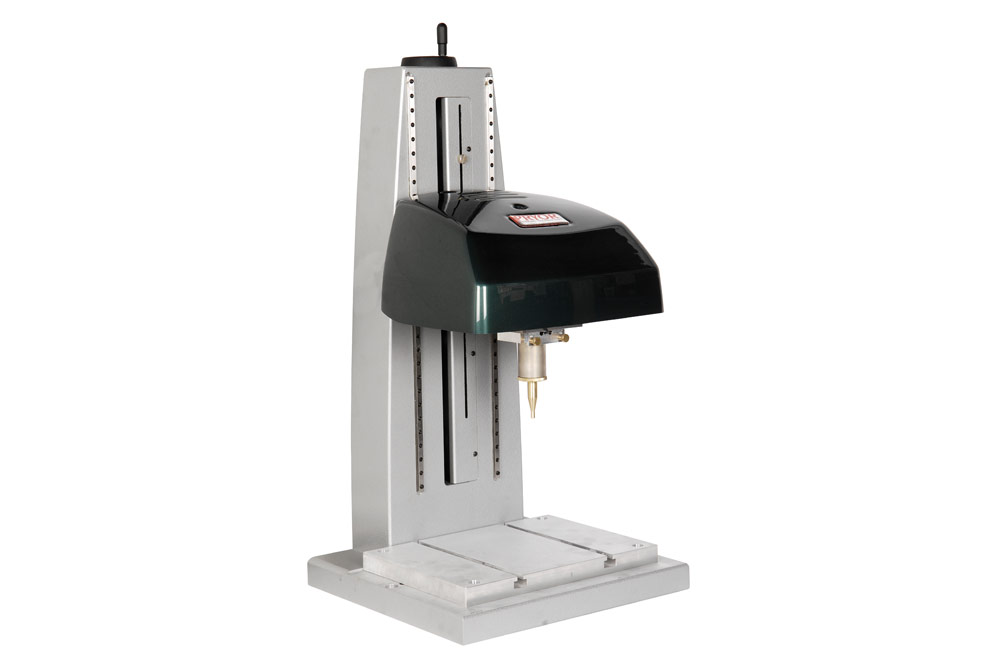

These bench-mounted dot peen direct part marking systems are designed for accuracy, speed, power and reliability. Robust yet compact, the BenchDot line is ideal for marking small- to medium-sized components (including irregular shapes) with text, logos, 2D codes and more.

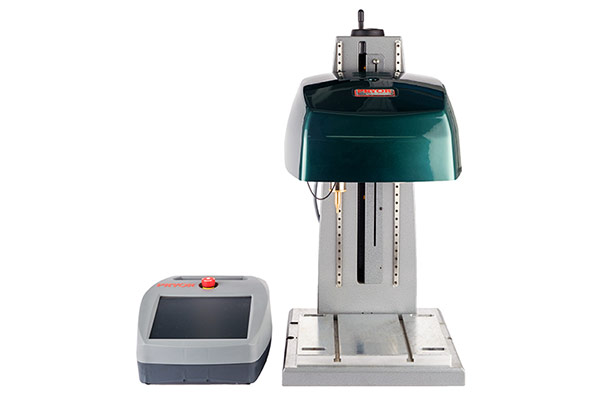

  • Powerful, self-contained systems with touch-screen controller that do not require a dedicated PC; well-suited for industrial environments

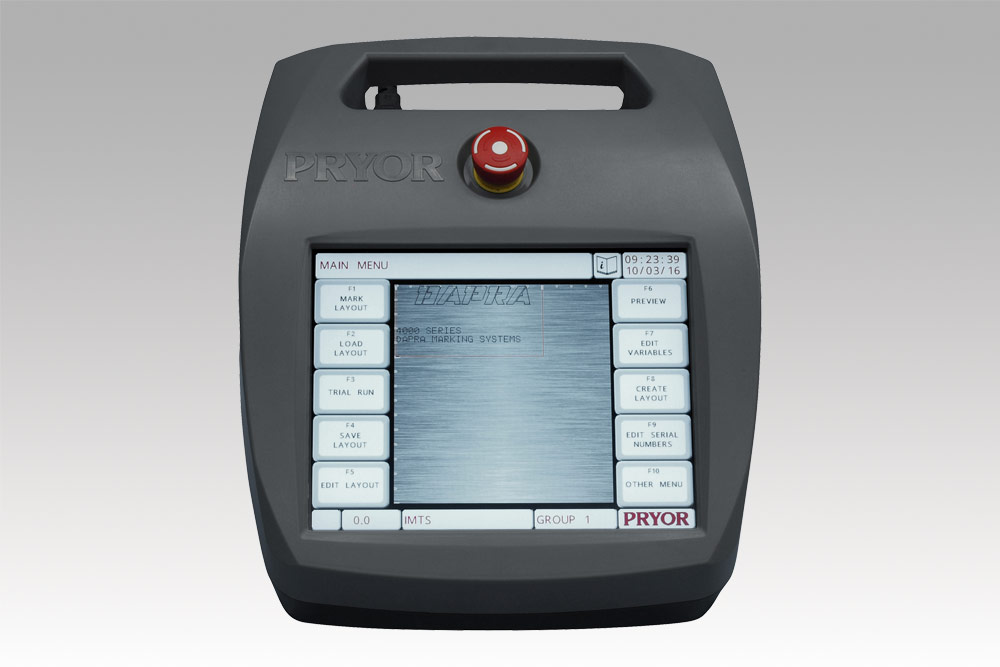

  • Pryor 4000 Controller features a full-color, resistive, industrial-grade touch screen; USB keyboard can be connected
  • Easily integrated into workshops and job shops thanks to high build quality and compact size
  • 3 marking window options: 100 x 100mm (4" x 4"), 150 x 150mm (6" x 6"), 300 x 150mm (12" x 6")
  • Power/Z-axis options: electric with manual Z-axis; electric with digital autosense Z-axis; or deep pneumatic (for very deep marking, up to 1.5mm in mild steel, for engine blocks and large castings, etc.)
  • Straight, angular, circular, and radial marking capability to accommodate a variety of part shapes and sizes with quick changeover

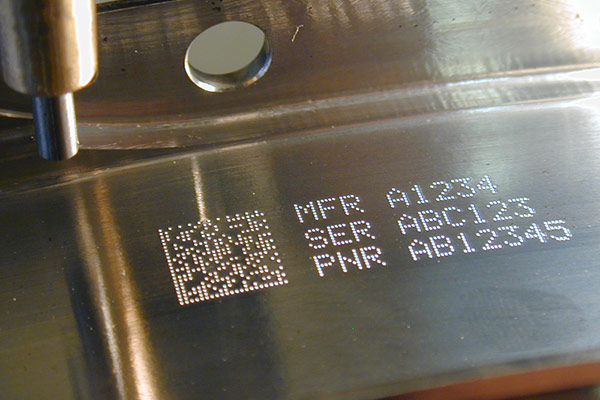

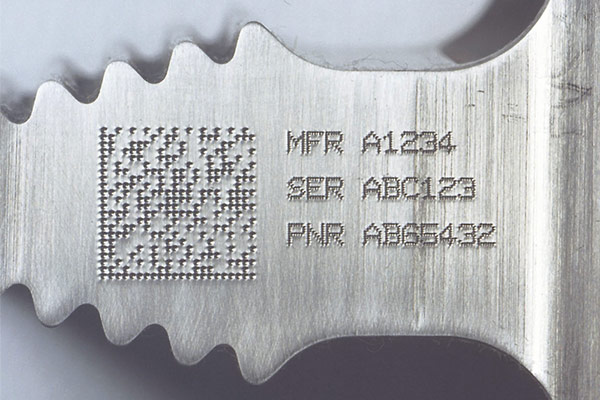

  • Permanently mark text, data matrix codes, logos and more
  • Included software handles data matrix codes (ECC 200), automatic time/date/shift coding, automatic part counting
  • 4000 Controller offers USB memory stick interface to transfer layouts, configuration, firmware and other data and logo files

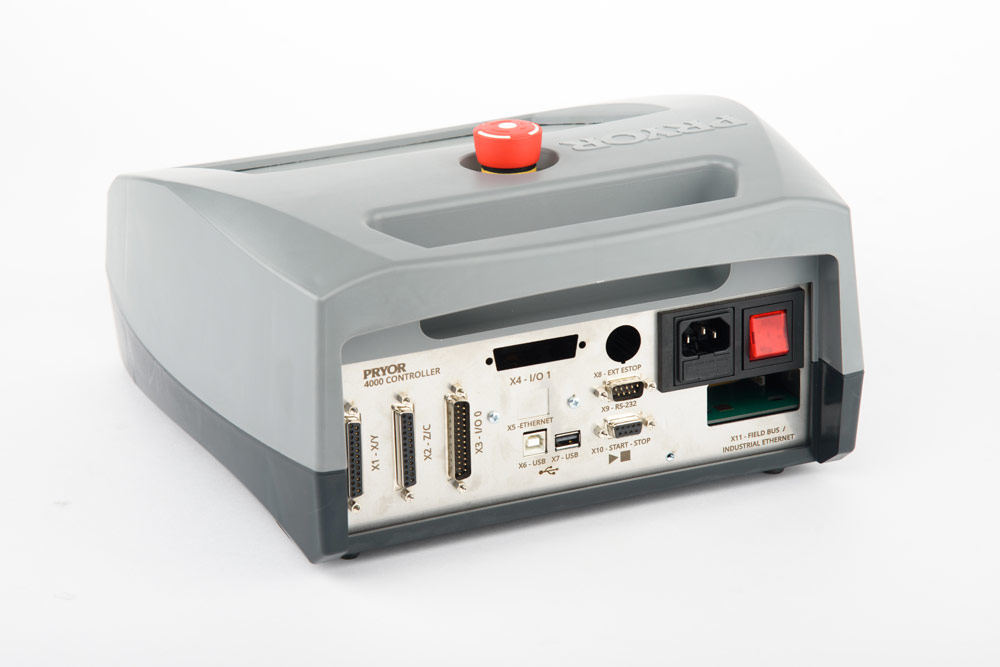

  • RS-232 ports for backup, barcode input and external communications
  • Heavy-duty construction for maximum rigidity

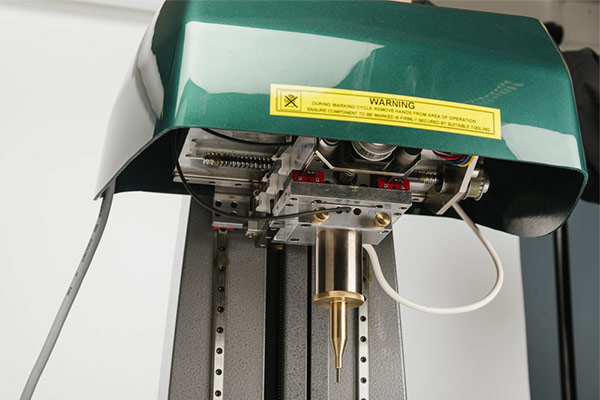

  • Regrindable carbide stylus with low-stress geometries
  • Can mark materials up to 62 Rc
  • A wide range of accessories are available to tailor the system to your specific marking requirements
Marking WindowMarking Head
(W x D)
3.94" x 3.94"
(100 x 100mm)
13.66" x 15.59" (347 x 396mm)
5.91" x 5.91"
(150 x 150mm)
15.67" x 17.56" (398 x 446mm)
11.81" x 5.91"
(300 x 150mm)
20.28" x 16.50" (515 x 419mm)
  • Machine weight: min. 88.2 lbs. (40 kg)
  • 4000 Controller dimensions: 12.2” x 13.3” x 6.9” (310 x 339 x 175mm) (W x D x H)
  • 4000 Controller weight: 11 lbs. (5 kg)
  • Character sizes: 0.15mm to 99.9mm in 0.15mm increments
  • Memory capacity: up to 1350 marking layouts
  • Electrical Supply: 220v 50Hz, 110v 60Hz
  • MarkMaster™ software
  • Larger marking area
  • Programmable Z-axis
  • Autosense (automatic part sensing)
  • Rotary device
  • Dual solenoids
  • Bar code readers
  • Heavy-duty deep marking
  • Manual and automatic tag fixtures and feeding systems
  • Reading and verification systems for data matrix codes
