Fiber Laser Marker Sources

20, 30, 50 and 100-Watt Marking Lasers

Dapra Class 1 laser marking systems and Class 4 offerings can be configured with fiber lasers from 20 to 100 watts. With more than 35 years of experience helping our customers with their marking requirements, we have the expertise to help you determine which laser and options are right for your application and budget. If you would like us to contact you, please complete the Request Information form below. If you would like to contact your Dapra territory manager, click here for a complete listing of sales people and contact information.

American-Made Fiber Laser Marker Sources

LASER Nominal Power Frequency (Modulation) Pulse Width Wavelength Cooling Interface
EQ1-20IF 20 Watts 2 - 200 kHz 100 ns 1064 nm Air Ethernet, RS232, USB
EQ1-30IF 30 Watts 2 - 200 kHz 100 ns 1064 nm Air Ethernet, RS232, USB
EQ1-50IF 50 Watts 2 - 200 kHz 100 ns 1064 nm Air Ethernet, RS232, USB
EQ1-100IF 100 Watts 2 - 200 kHz 100 ns 1064 nm Air Ethernet, RS232, USB

Lens Configurations:

Lens Marking Window Max. Part Height
1634.33" x 4.33" (110 x 110 mm)14.5"
2546.7" x 6.7" (170 x 170 mm)10.6"
3308.1" x 8.1" (205 x 205 mm)5.85"

Datamark FL Series Fiber Laser Marker Sources – Made in France

LASER Nominal Power Frequency (Modulation) Pulse Width Wavelength Cooling Interface
FL-20 20 Watts 20 - 80 kHz 80 - 140 ns 1050 - 1070 nm Air USB 2.0, IN/OUT
FL-20 MOPA 20 Watts For pulse width 2 - 40 ns: 1 - 2000 kHz
For pulse width 50 - 80 ns: 1 - 1000 kHz
For pulse width 100 - 200 ns: 1 - 400 kHz
2 - 40 ns
50 - 80 ns
100 - 200 ns
1050 - 1070 nm Air USB 2.0, IN/OUT
FL-30 30 Watts 30 - 60 kHz 80 - 140 ns 1050 - 1070 nm Air USB 2.0, IN/OUT
FL-50 50 Watts 50 - 80 kHz 80 - 140 ns 1050 - 1070 nm Air USB 2.0, IN/OUT

Lens Configurations:

Lens Marking Window Max. Part Height
1604.33" x 4.33" (110 x 110 mm)12.85"
2546.9" x 6.9" (175 x 175 mm)8.75"

Dapra Fiber Laser Marking Systems:

Class 1 Configurations

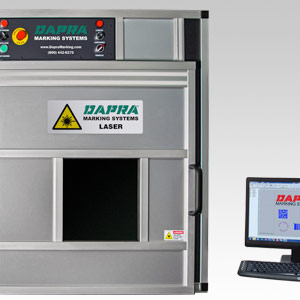

Class 1 Laser Part Marking Workstations

Class 1 Workstations

Turnkey industrial bench-top laser marking workstations that will hold up to your demanding requirements and provide industry-leading safety.

Class 4 Configurations

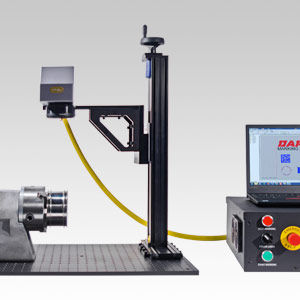

Dapra Class 4 Laser Marking Offerings

Class 4 Offerings

Open-style architecture allows you to mark both small and large parts without the limitations of a cabinet.
