DoD / UID Direct Part Marking & Identification Solutions

Marking to MIL-STD-130

Dapra can help you ensure that you are adhering to MIL-STD-130 when marking Department of Defense (DoD) components for clear, permanent identification and traceability.

A wide variety of parts and components are supplied to the DoD, and many legacy parts are currently stocked in DoD depots. This can range from fighter jet and tank components to parts for military vehicles, ammunitions, firearms and more.

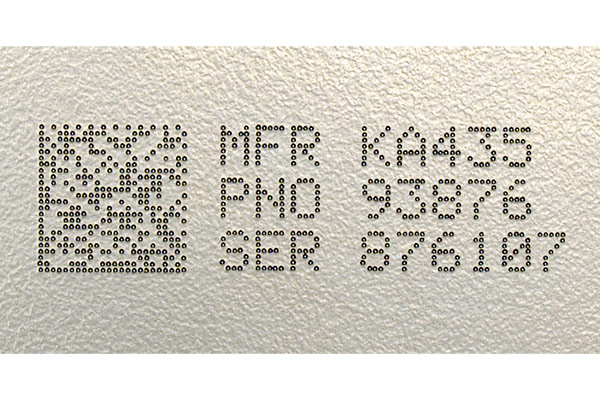

Data Matrix, a machine-readable code, is a standard for implementation of permanent, direct part marking (DPM) and part tracking programs. It can be utilized throughout the part life cycle, which includes manufacturing, supply chain and in-service operations. Many industries, including Aerospace, Automotive and Electronics, have already implemented machine-readable technologies based around Data Matrix codes. Most recently, the demand for this technology has been driven by the DoD (Department of Defense) and their UID directive.

UID stands for “Unique Identification.” As defined by the DoD, “Unique IDentification is a set of data for tangible assets that is globally unique and unambiguous, ensures data integrity and data quality throughout life, and supports multi-faceted business applications and users.”

Dapra Marking has been supplying DPM solutions for more than 30 years. Initial marking requirements were for unique serial numbers and date codes to be permanently marked on the component for traceability throughout the life cycle of the component. With the introduction of the 2D Data Matrix code, substantial data can be stored and encoded within a smaller footprint than in the past. To accommodate the growth of 2D technology, Dapra has expanded its product offering to encompass custom-engineered and turnkey solutions for dot peen, electrochemical, and laser marking. These systems include appropriate verification and reading technology required to meet the standards of various industries, including DoD MIL-STD-130M.

DoD / UID Direct Part Marking (DPM):

  • Fighter jet and tank components
  • Parts for military vehicles, ammunitions, firearms, etc.

Popular Solutions for DoD UID Part Marking:

Dot Peen Systems:

Bench-top part marking system

Multi 4 Modular Benchtop Dot Peen Marking System

For permanent marking of small- and medium-sized pieces, whether a single part or mass production.

Bench-top part marking system

BenchDot Bench-Top Dot Peen Marking System

Compact, versatile bench-top solution for marking small- to medium-sized components (including irregular shapes) .

Bench-Top Pneumatic Part Marking Systems

MK3 Bench-Mounted Pneumatically Actuated Systems

Completely self-contained, pneumatically actuated bench-top dot peen / vibro peen marking systems featuring an integrated 7" touch-screen programming panel.

Laser Systems:

Graphix Class 1 Fiber Laser Part Marking Workstations

Graphix Laser Part Marking Workstations

Turnkey Class 1, 4-axis fiber laser marking workstations, designed to mark parts and components of various shapes and sizes – from low volumes to large batches.

Electrochemical Systems:

Electrochemical Print on Demand Systems (PODS)

Electrochemical Print on Demand Systems (PODS)

Offers all of the benefits of electrochemical marking, plus the ability to mark variable information such as sequential serial numbers, data matrix codes, logos, graphics and multiline text.

CNC Marking Tools:

DMwriter MX CNC Spindle Marking Tool

DMwriter™ MX Dot Peen CNC Spindle Marking Tool

Economical, mechanical spindle marking tool that is easily integrated into vertical or horizontal machining centers, milling machines and equivalent CNC machines with a rotating spindle. Does not require electrical or pneumatic input for operation.
