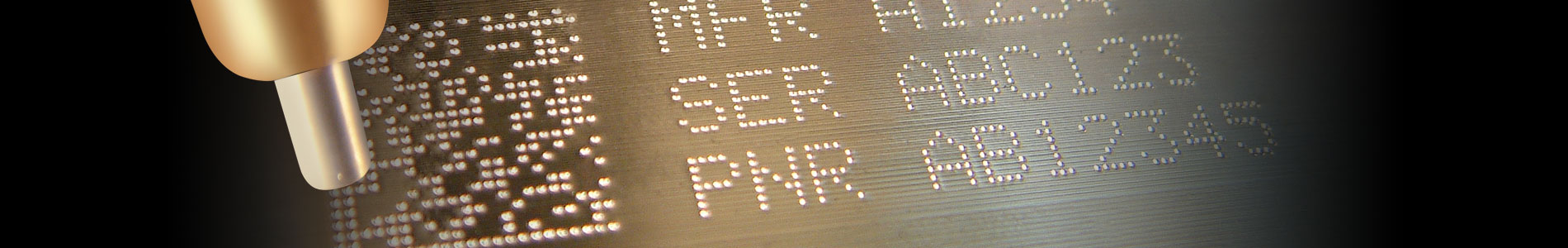

Dot Peen Direct Part Marking

Dot Marking, Impression Marking, Pin Marking

Dapra offers a variety of low-stress, economical, permanent dot peen marking solutions for direct part marking and identification. Programmable 2-, 3- and 4-axis systems can be provided. We offer dot peen marking solutions for use in CNC machines.

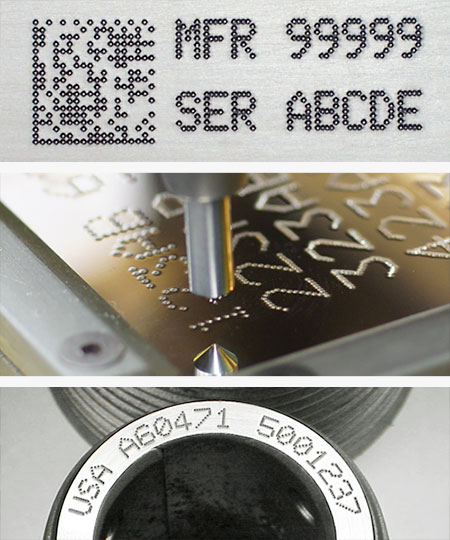

Dot peen marking involves permanently indenting dots (spherical recesses) into a component with a stylus (needle, pin, etc.) with a specific end geometry (typically 90 or 120 degree included angles) and a point radius (typically 0.005” to 0.010”). The initial concept of dot peen was to create alpha-numeric characters, symbols and 2D codes consisting of individual recesses that did not overlap, unlike micropercussion and vibro peen.

Dot peen is considered a low-stress method of marking, making it ideal for most aerospace and oil & gas applications. Most materials (up to 65 HRC) can be marked with the dot peen process. It provides a clear, cost-effective solution for permanent identification and marking data matrix codes.

Advantages:

  • Permanent marks
  • Good marking depth
  • Highly visible mark in most applications
  • Inexpensive technology
  • Low-stress marking

Disadvantages:

  • Low contrast of mark in some applications
  • Low resolution of logos/graphics

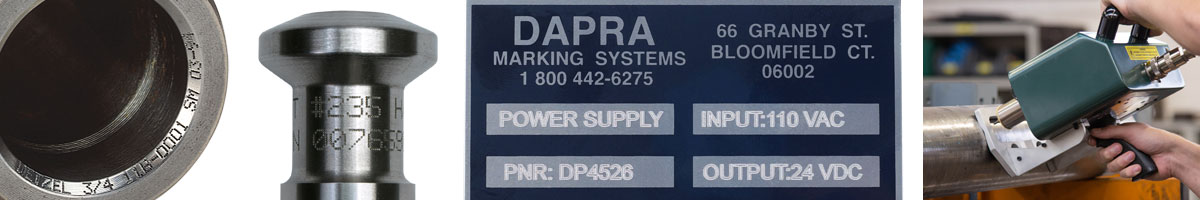

The dot peen process can be used in almost any industry, but it is best suited for aerospace, oil & gas and general manufacturing.

Dot Peen Part Marking Solutions from Dapra:

Select your dot peen marking machine by configuration:

Full dot peen product listing:

Model Configuration Actuation Marking Window (mm) Notes
M4 InlineIntegratedElectric Solenoid
  • 50 x 55
  • 120 x 55
  • 200 x 55
Fully configurable 16 I/O card.
Multi 4 GPortableElectric Solenoid
  • 50 x 60
  • 120 x 60
  • 200 x 60
Multi 4 BBenchElectric Solenoid
  • 50 x 60
  • 120 x 60
  • 200 x 60
  • 200 x 200
Multi 4 CComboElectric Solenoid
  • 50 x 60
  • 120 x 60
Maxim IIIBenchElectric Solenoid
  • 100 x 75
Low-cost, bare-bones job shop solution.

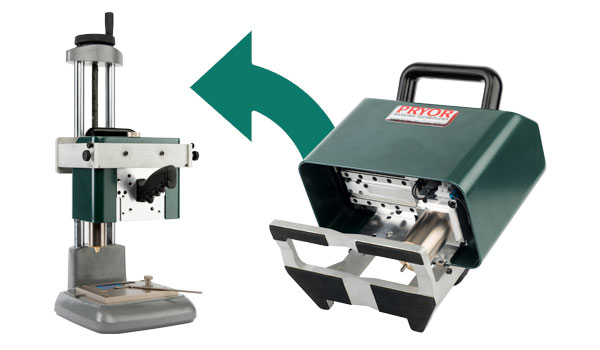

PortaDotPortable / ComboElectric Solenoid
  • 50 x 25
  • 100 x 75
  • 130 x 30
Integrated lighting available (model 130-30). Bench option available for P 50-25 and P 130-30.
BenchDotBenchElectric Solenoid
  • 100 x 100
  • 150 x 150
  • 300 x 150
Manual column or with Electric Z/Autosense.

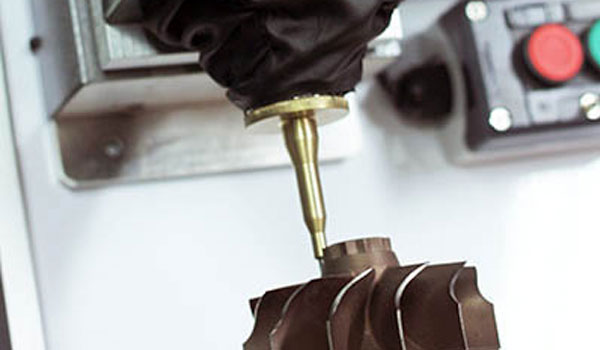

InDotIntegratedElectric Solenoid
  • 50 x 25
  • 130 x 30
  • 60 x 60
  • 150 x 150
  • 300 x 150
Pneumatic actuation available.
FlexmarkComboElectric Solenoid
  • 120 x 60
Low-cost, bare-bones job shop solution

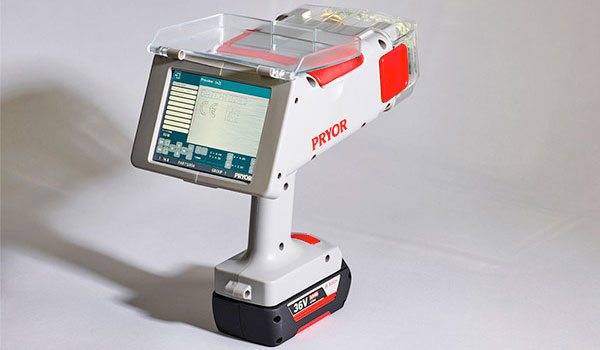

MK3 PortablePortable / ComboPneumatic or Electric Solenoid
  • 80 x 50
  • 80 x 35 (E20 – Electric)
  • 110 x 30
  • 130 x 25
  • 130 x 100
Integrated touch-screen control panel (model P50). Heavy-duty models (X50, X90) for very deep marking. Electric actuation (E20) available.
MK3 BenchBenchPneumatic or Electric Solenoid
  • 130 x 100
Integrated touch-screen control panel (S50 pneumatic) and electric actuation (S70) available.
MK3 IntegratorIntegratedPneumatic
  • 130 x 25
  • 80 x 50
  • 130 x 100
  • 110 x 30
  • 100 x 80
IP65 model available (M80-IP65)
DMwriter™ MXCNC MechanicalDependent on the Machine ToolCompletely mechanical
