Integrated Scribe Marking System for VIN Marking, Automotive Production Lines

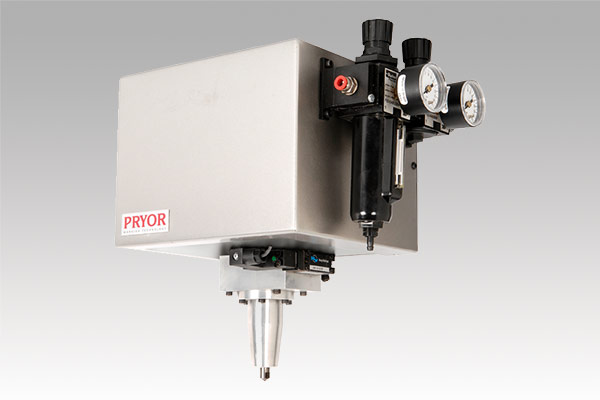

Pryor InScribe – 4000 I Scribe

InScribe scribe / etching / engraving systems can be easily integrated into production lines and custom systems for permanent, high-volume part marking and identification. This high-speed solution with high-quality, continuous-line marks is often used for automotive VIN marking.

  • Creates a high-quality, permanent continuous line mark
  • Suitable for high volume production and identification
  • Adjustable force depth to mark many different materials
  • Very quiet marking process

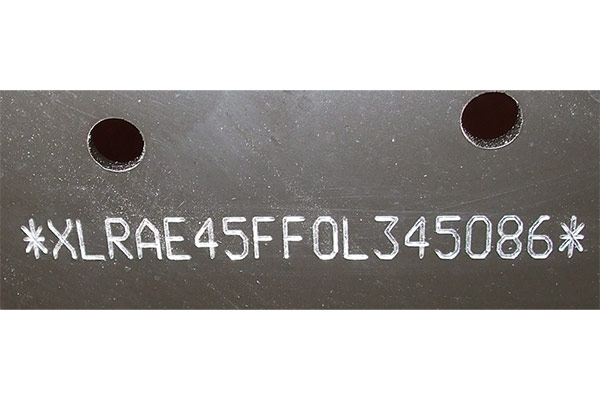

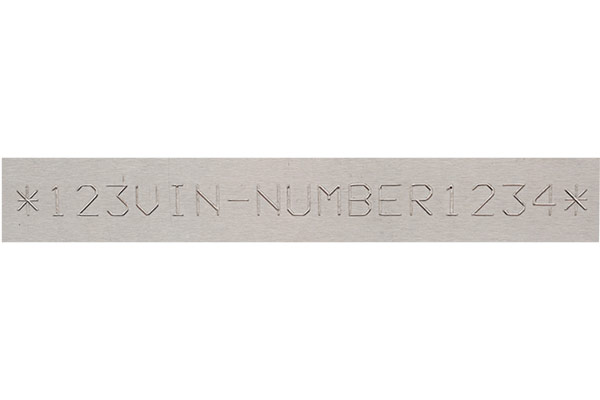

  • Ideal for automotive manufacturers marking car engines and chassis with individual identification numbers (VIN), manufacturing information and logos
  • Two standard marking window options: 60 x 60mm or 150 x 150mm – others available on request
  • Employs a precise ball screw XY driving mechanism that can mark uneven surfaces
  • Heavy-duty carbide (for wide, deep marks) and diamond (for finer, smaller characters and intricate details) tip options

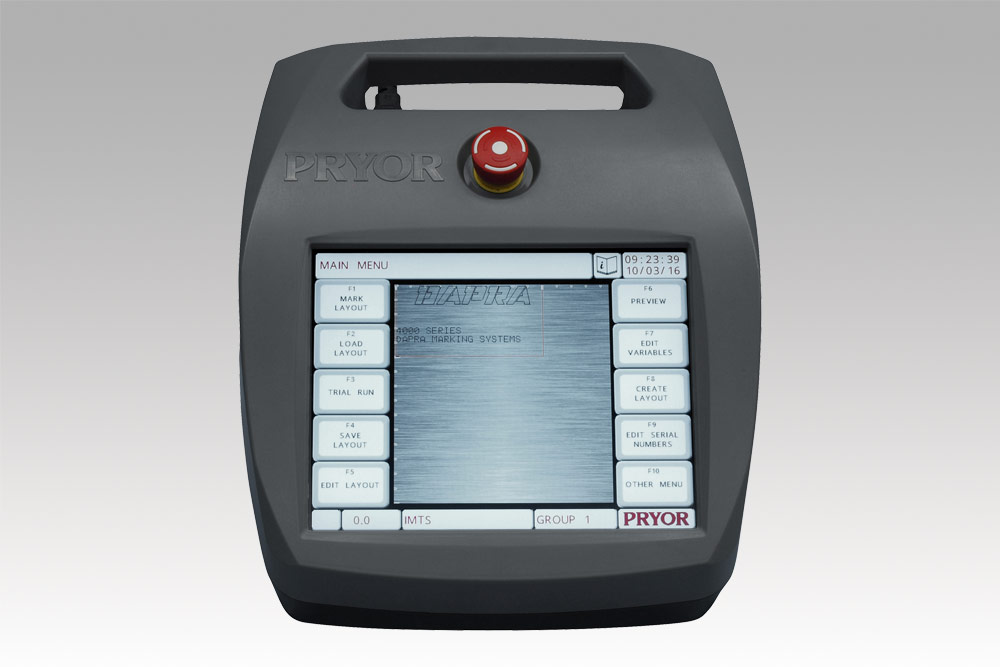

  • Pryor 4000 Controller features a full-color, resistive, industrial-grade touch screen; USB keyboard can be connected
  • Standard models:
    • 60-60: 2.36" x 2.36" (60 x 60mm) marking window
    • 150-150: 5.91" x 5.91" (150 x 150mm) marking window
  • Weight: 75 lbs. (34 kg)
  • 4000 Controller dimensions: 12.2" x 13.3" x 6.9" (310 x 339 x 175mm) (W x D x H)
  • 4000 Controller weight: 11 lbs. (5 kg)
  • Diamond-tipped or tungsten carbide stylus
  • Standard character sizes: 0.15mm - 99.9mm in increments of 0.15mm
  • Marking formats: Various fonts, HPGL, BMP Logos
  • Memory storage: Up to 1350 marking programs

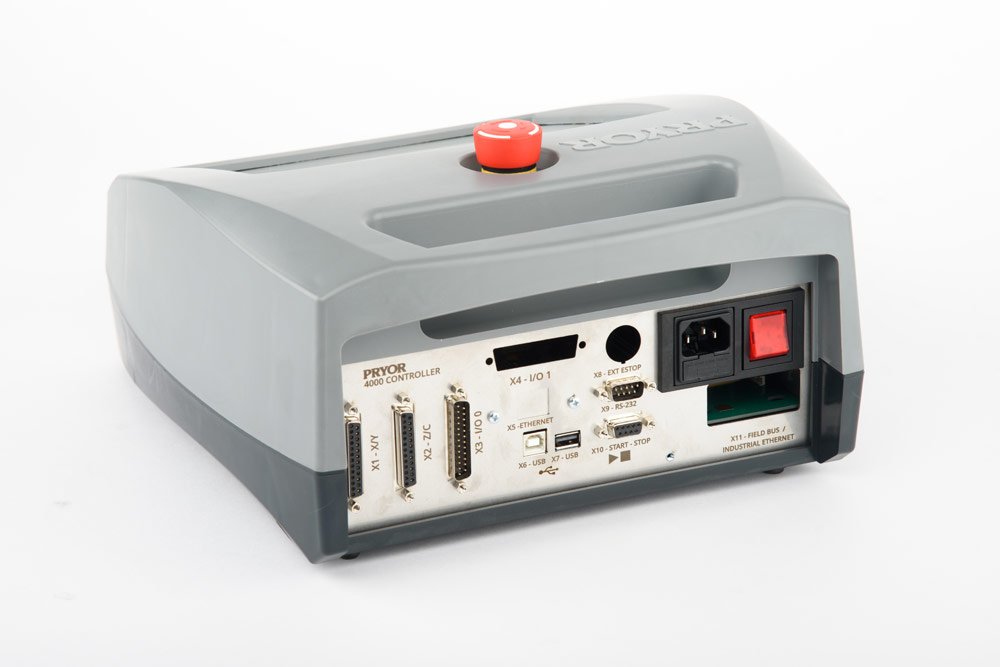

  • 2 x RS232 and Digital I/O (8 In / 6 Out) connectivity – optional Ethernet TCP/IP
  • Full QWERTY integrated membrane keyboard with PS/2 port for external keyboards
  • On-screen mark preview and trial-run features
  • Remote start/stop control box
  • Electrical supply: 220 V 50 Hz, 110 V 60 Hz
  • Emergency stop box
