Pneumatic Integrated Dot Peen Markers with Touchscreen Controller

Datamark MP Integrated Series

MP Integrated series dot peen markers are designed for easy integration into production lines and manufacturing cells. Each system includes a compact, yet powerful pneumatically actuated marking head that is easy to install in small or hard-to-reach areas; and a mountable full-color, industrial-grade touchscreen control panel running intuitive, fully featured marking software.

  • Compact, lightweight design with robust, all-metal construction
  • Powerful pneumatic marking head for high-speed (up to 12 characters per second), precise marking; capable of creating deep marks that remain readable after painting, galvanizing or blasting the part
  • Cost effective; requires little maintenance

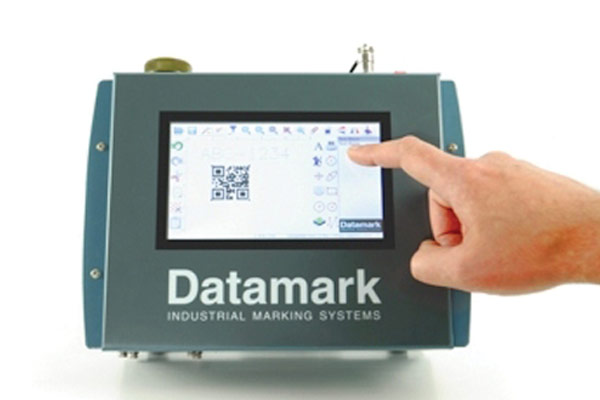

  • 7" full-color touchscreen controller; operate either in standalone mode or receive marking data commands from a network system, PC or PLC
  • Fully featured, intuitive DataMark™ marking software included with WYSIWYG interface; mark text, numbers, logos, Data Matrix codes and more
  • Programmable marking speed, depth and dot density; for metals up to 62 Rc
  • Interchangeable marking stylus for standard, fast and deep marking
  • Automatic marking of serial numbers, dates, time and shift codes

Complete system includes marking head with start-stop button and air pressure regulator; touchscreen controller; software package.

  • Marking head technology: Pneumatic
  • Operating air pressure: 60 to 85 psi
  • Marking stylus: Standard LP-10 / HF-16 for ultra high speed
  • Marking control: Plug & play 7” TFT SVGA touch-screen controller with 19.69 ft (6m) cable
  • Interfaces: USB, RS-232/RS-485, IN/OUT, start-stop
  • Marking data: Alphanumeric text and keyboard symbols, serial numbers, automatic date & time, shift codes, data matrix codes, vector graphics and logos (.PLT)
  • Marking fonts: Dot matrix formed: 5 x 7, 7 x 9, 11x16; Continuous line: Fastflan and standard
  • Power supply: 110/220V; 50/60Hz
  • CE certified

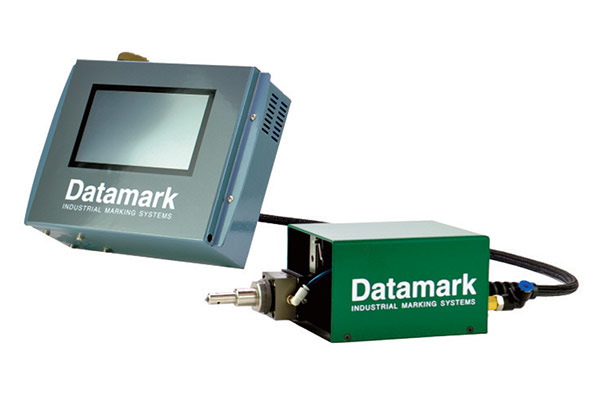

Model MP-50 Integrated

  • Marking window: 1.97” x 1.18” (50 x 30 mm)
  • Dimensions:
    • Marking head: 4.49” x 3.43” x 10.31” (width x height x depth)
    • Controller: 11.3” x 3.54” x 7.28” (width x height x depth)
  • Weight:
    • Marking head: 3 lbs 12 oz
    • Controller: 5 lbs 15 oz

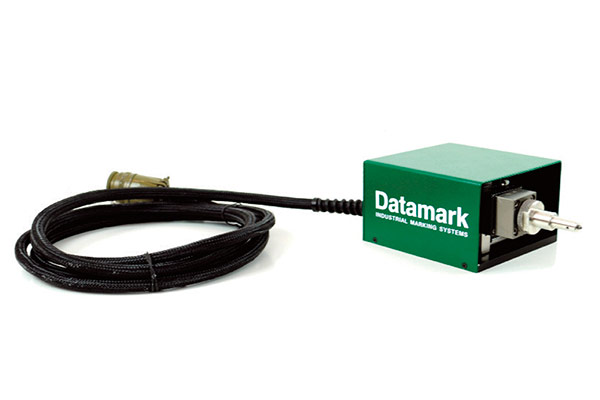

Model MP-80 Integrated

  • Marking window: 3.15” x 1.18” (80 x 30 mm)
  • Dimensions:
    • Marking head: 5.67” x 8.11” x 10.31” (width x height x depth)
    • Controller: 11.3” x 3.54” x 7.28” (width x height x depth)
  • Weight:
    • Marking head: 4 lbs 3 oz
    • Controller: 5 lbs 15 oz

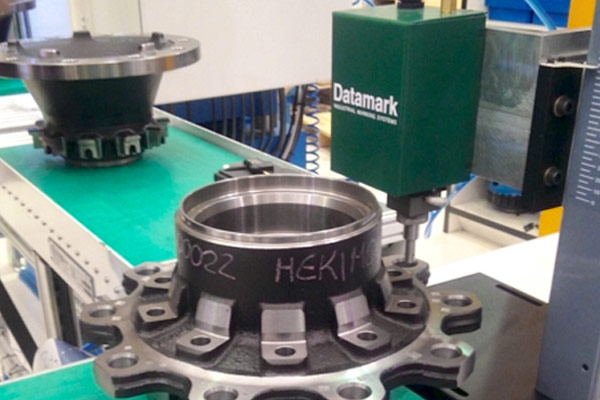

  • Marking parts and components directly within a production line or manufacturing cell
  • Machined parts
  • Profiles and tubes
  • Marking large and heavy objects
  • Column/base for benchtop marking
  • Data plate marking fixture
